PRODUCT

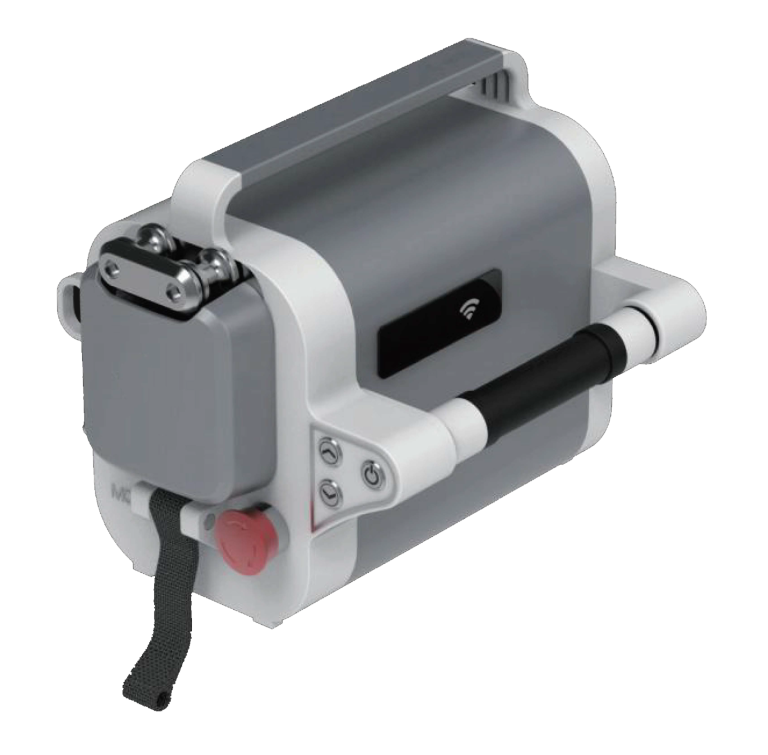

Automated Ascender

MORE to DOWNLOAD from PRODUCT CATALOGUE BELOW





TECHNICAL SPECIFICATIONS:

Appearance material: Durable aviation aluminum

Battery: 5000 mah power battery(hot swapped)

Power: 1000 w

Running distance (single battery): 330 m(120 kg loading)

Operating temperature: -20°c-~+50°c

WiFi: Standard

Appearance size: 330*265*267(mm)

Voltage: 36v

Max loading: 200kg

Emergency descending when power off: Have

Protection grade: lP54

WiFi max distance: 100m

Body weight: 14.3kg (include battery)

Maximum operation time: 15min (full loading)

Variable speed control:Ascending om/min-20m/min; descending om/min-37m/min

Emergency stop: Have

Standard safety buckle: D-safety buckle

Charger: Single charger*1; or choose one charging station one to ten

Rope suggested: En1891 standard, static rope wire diameter 10mm-1 1 mm, ductility shall not exceed 4%
