GST Acro Winch

MORE to DOWNLOAD from PRODUCT CATALOGUE BELOW

Product Description

GST provides turn key solution for your equipment and service needs.

Effectively designed with certified components that provide high precision and safety factor.

Competitive pricing worldwide without downgrading functionality and practicality.

Fast international shipping of 2-3 weeks.

Zero fleet and compact design that provide flexibility and easiness for mounting and touring.

Servo motor with dual encoder and redundant, manually releasable brakes that offer smooth, reliable and quiet operation.

Perfect for single point aerial performance and also customizable for a dual line system.

Safe working load of 250kg with safety factor of 10:1 (6mm and above).

Controlled with programmable touch screen console for variable speed of0 – 2m/s (up to 3m/s on request).

Drum capacity of 20m (and above on request) with SWR 3-7mm (synthetic rope and other SWR sizes on request).



Safety Features

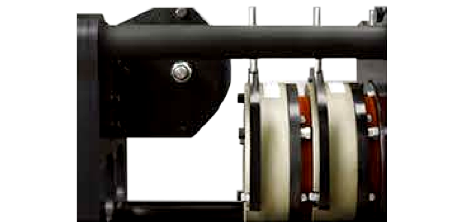

Dual Brakes

Manual Release

10:1 Safety Factor

Real-time Load Data on Console

Absolute Encoders

Dual Position Encoders

4 Mechanical Limits

Slack Line & Cross Groove Detection

Control

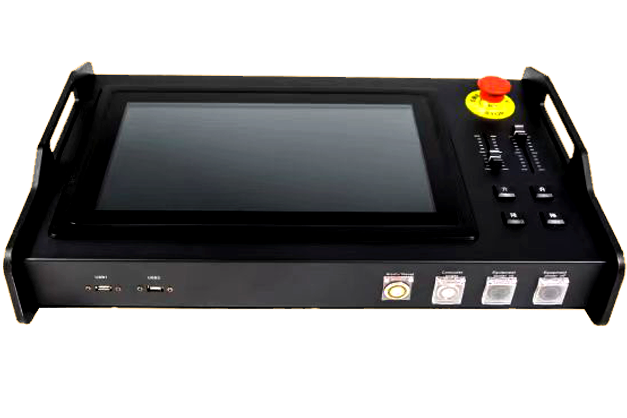

Programmable Touch Screen Compact Console

Remote Trtoubleshooting Available (via pre-installed computer with internet access, on request)

Electrical

Servo Motor Horsepower: 4.4 kw

Motor Phase: 3 Phase + PE

Voltage: 220V-380V, 50/60HZ

Mechanical

Dimensions: W 14.8in xL 70.9in x H 14.8in (W 375mm xL1800mm x H 375mm)

Safe Working Load: 551lbs (250 kg)

Variable Speed: 0-2m/s

Standard Travel: 66 feet / 20m (and above on request)

Drum Diameter: 6in (156mm)

Steel Wire Rope: 5mm as standard (synthetic rope and other SWR sizes on request)

Brake Coil: 200Nm

SelfWeight: 661 lbs (300 kg)
