PRODUCT

GST-TT2415U-02 Portable Pre-Rig Truss

MORE to DOWNLOAD from PRODUCT CATALOGUE BELOW

GST-TT2415U-02 Portable Pre-Rig Truss

MORE to DOWNLOAD from PRODUCT CATALOGUE BELOW





TECHNICAL SPECIFICATIONS:

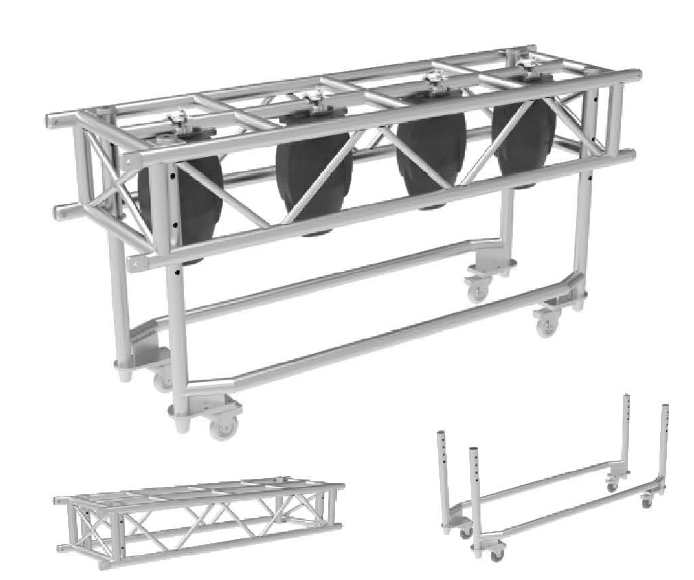

GST-Light Pre-Rig Truss is a patented truss that is 14″ tall, has an open bottom, and comes in two widths: 24-inch and 30-inch. lt is available in black or silver and is offered in multiple length, such as 4ft, 6ft,8ft, and 10ft. lt boasts several advantages as listed below:

1.  360° Rotating fork connection.

2. Cart with folding design, saving storage space.

3. Visualized holes alignment for adjustable height.

4. Extend to different shapes and angles.

5. Easy to handle and transport, without additional dolly.

6. Install the lights in the warehouse in advance or on-site to save time.

7. In accordance with DlN EN1 999-1-1 and 1999-1-1/A2, designed with a quick connection system for touring or any occasion.

SPAN
Kg/m mm** Kg mm Kg(2x) mm Kg(3x) mm Kg(4x) mm
4 1141 13 2315 11 1736 12 1157 13 964 14
6 501 30 1502 24 1126 26 751 27 626 29
8 271 53 1083 44 812 46 541 49 451 51
10 164 83 821 69 616 72 411 76 342 80
12 106 120 639 101 479 106 319 111 266 116
14 72 163 501 139 376 145 251 151 209 157
16 49 213 392 185 294 192 196 199 163 206
18 34 270 301 239 226 247 151 255 126 263
*in meters/**mm is the deflection of the truss at the given load
Material Imperial

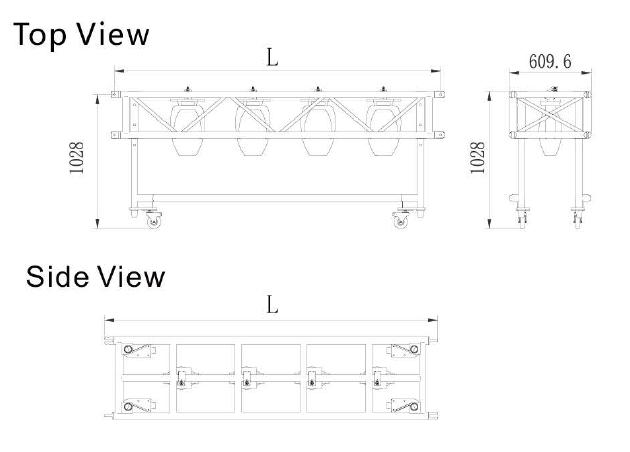

Height 355.6mm 14in
Width 609.6 mm 24in
Main Tube 50.8×3.2mm 2×0.13in
Vice Tube 50.8×3.2mm 1×0.13in
Weight ~13kg/m ~28.7lbs/m
~5kg/m(cart) ~11lbs/m
Material EN AW-6061 T6
