Introduction:

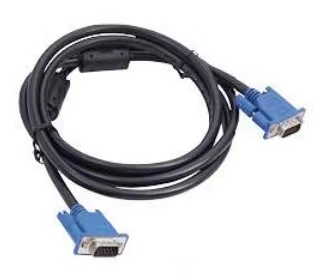

VGA male to male connecting line, transmission undistorted, 3+6 core structure.

The interface is plated with gold-plated interface, anti-oxidation, and effectively improve the signal transmission quality, and can be durable after multiple plugging.

Configure the magnetic ring design to prevent the interference of other electrical appliances, enhance the isolation of EMI/RFI signal interference, solve the problems oi water ripple, double shadow and soon.

Fashionable appearance design, outside is with the core insulation layer adopt PVC material, soft and with toughness, environmental protection flame retardant.

1.5M

3M

5M

10M

12M

15M

20M

25M

30M

30AWG(Copper cable is single-stranded, with a diameter of 0.25 millimeters.)
(1/0.25BC*1C+D)*3C+1/0.25BC*6C+AL+D+96B+PVC OD:7.3mm
(1/025BC*1P+D)*3C: Three single strands of 0.25mm pure copper plus one ground cable.
1/0.25BC*4C: Six single strands
AL: Aluminum foil Mylar
D: Overall ground cable
96B: 96 braided
PVC: Outer sheath of the cable
