T9025BG

MORE to DOWNLOAD from PRODUCT CATALOGUE BELOW

Product Descriptio

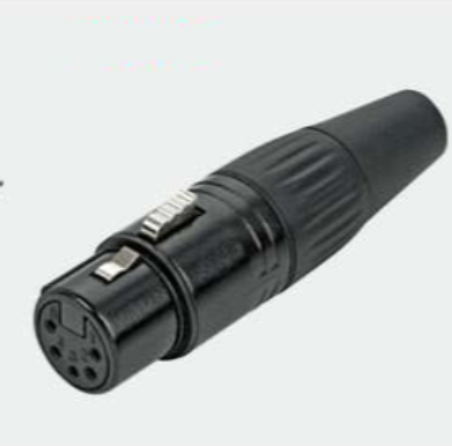

5PXLR Male/Female Connector assemble without rivets.

Beryllium copper contact, ensure its insertion / withdrawal force and lifecycle.

Ground plate with special plating ,ensure prodct per-formance and easy to solder.

Housing can be nickle plating and black plating. contact can be tinplating and gold plating, real can be metal or plastic.

Widely used in audio/lighting, communication, e-bike charger application etc.

Performance:

Contact resistance: < 0.01Ω

Insulation resistance: > 2000Ω

Dielectric strength: AC250V 50Hz

Other:

Lifetime>1’200 mating cycles

Temperature range: -30℃ to + 80℃

Remark:

All parts comply with SGS, certificate is available

Products comply with ROHS

Products with CE Recognized
