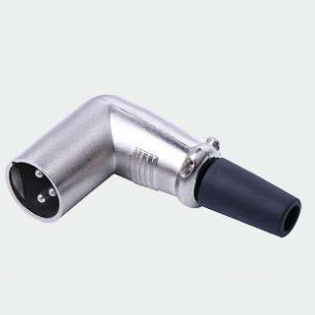

3P XLR Male/Female Connector, assemble without rivets.
Copper plating contact, ensure its insertion / withdrawal fore and lifecycle.
Ground plate with special plating ,ensure prodct per-formance and easy to solder.
Housing can be nickle plating and black plating, contact can be tinplating and gold plating, real can be metal or plastic.
Widely used in audio/lighting. communication, application etc.
Contact resistance: < 0.01Ω
Insulation resistance: > 2000Ω
Dielectric strength: AC250V 50Hz
Lifetime>1’200 mating cycles
Temperature range:-30℃ to + 80℃
All parts comply with SGS, certificate is available
Products comply with ROHS
Products with CE Recognized
