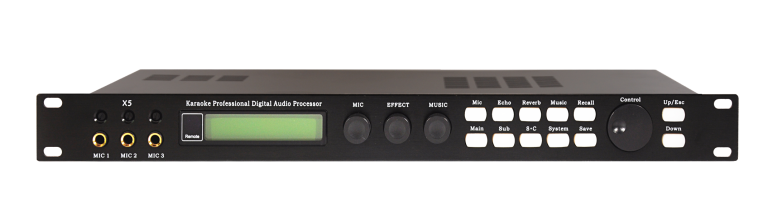

GST- Preamp/Effects Processor

MORE to DOWNLOAD from PRODUCT CATALOGUE BELOW

GST- Preamp/Effects Processor

MORE to DOWNLOAD from PRODUCT CATALOGUE BELOW



TECHNICAL SPECIFICATIONS:

Maximum input level: 4V (RMS)
Maximum output level: 4V (RMS)
Music channel gain: MAX: 12dB
Microphone sensitivity: 64mV (out: 4V)
Signal-to-noise ratio:>80dB
Input voltage: 220V 50Hz
Dimensions (LxWxH):483*225*52mm
Net weight: 3.7 Kg
Gross weight: 4.5 Kg
Karaoke effects processor with speaker processing capabilities, all functions can be adjusted.Uses a 24-bit data bus and 32-bit DSP
Music has a 7-band parametric equalizer
High-pass filter for music to main output: 12dB/24dB (0Hz 303Hz)
Mic has a 15-band parametric equalizer
With microphone pressure limit function.The main output is equipped with 5 segments of parameter equalizer, with compression limiter.The middle output, rear output, and subs are all equipped with 3 segments of parameter equalizer.The microphone has 4 feedback suppression modes: OFF, 1, 2, 3. lt can store 16 modes .The microphone output, main output, middle output, subs output, and rear output are all equipped with voltage limit and delay functions
There are manager mode and user mode, user mode cannot be saved after adjusting parameters Has a full function menu that can be set through a powerful PC interface
