Key Specs

3P Asynch/Induction Gear Motor

Effective Travel: 21m/68.9ft (and above upon request)

Motor Power: 2.2kw

Dual Brake

Dual Encoder: Incremental 1024TTL and Absolute Biss C

4 Gear Rotary Limit Switch

S Beam Load Cell and Transducer

Brake Monitoring: MicroSwitch

Contact Plate: Drum Side for Slack and Cross Groove Detection

Payload: 250kg/551lbs (and above per customizable)

Speed: 0.6m/s or 2ft/s

Gear Ratio: 32

Output Speed: 45rpm

Output Torque: 420Nm

Gear Motor Weight: 68kg/150lbs

Total Winch: 220kg/485lbs

SWR: 8mm 18×7 FC-1770

Input Voltage: 3P 480VAC/380VAC

Brake Voltage: 215VDC from Rectifier

Color: Black or per Customizable

Size (mm/inch): 736Lx507Wx1101H or 29inLx20inWx43inH

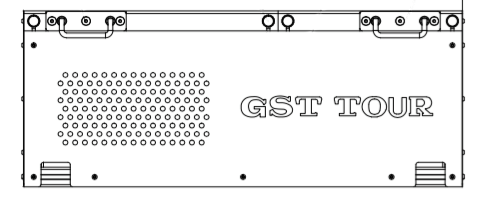

For more information, please inquire for Winch Information Drawing.
